A Command-Line Tool That Simplifies Debugging Your Applications

Introduction

RTI Log Parser is a command-line tool that processes and clarifies RTI Connext® DDS and RTI Connext DDS Micro log messages, making it easier to debug applications.

Connext DDS output and debugging log files both provide extensive detail about the execution of a DDS application, but they are not optimized for human comprehension. And while error and warning messages are easier to understand, they do not provide all of the details that a user may need to pinpoint the source of an issue.

rti-diagram-log-parser-picture-of-system-0318

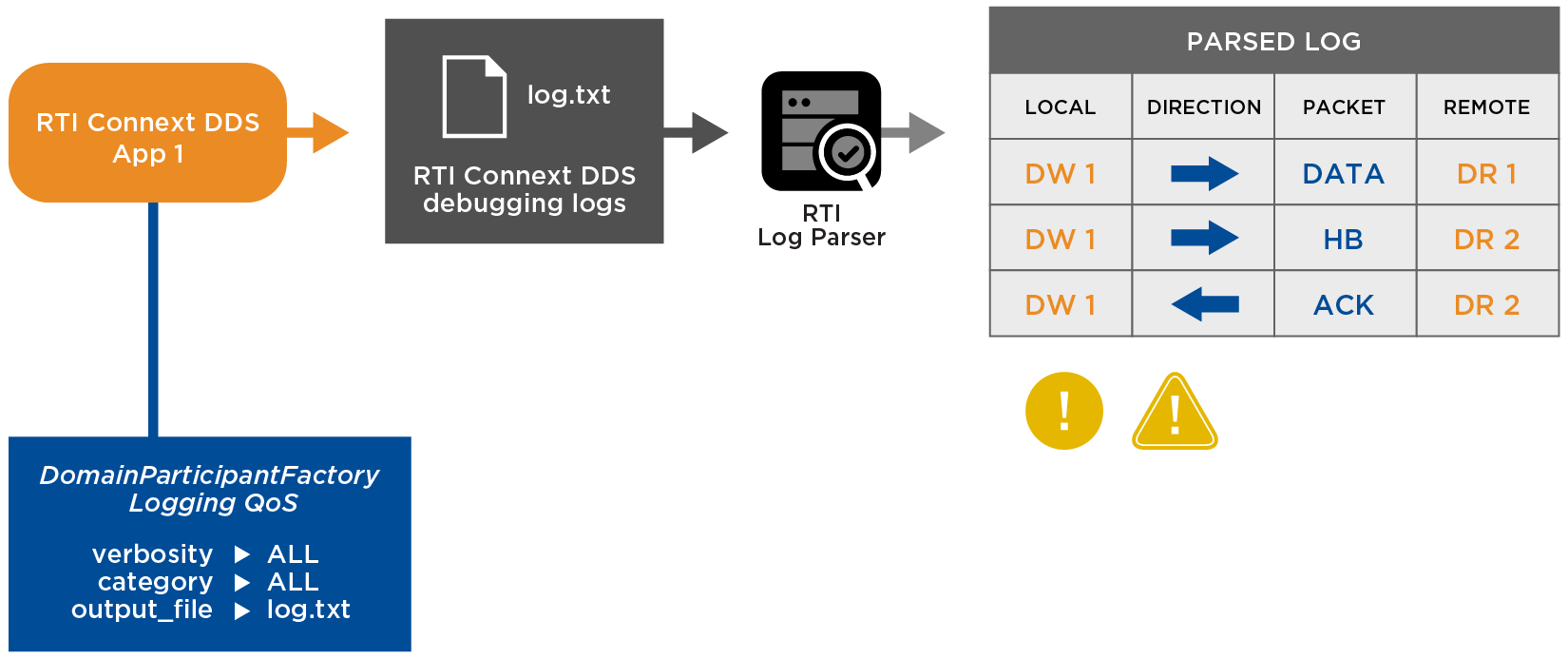

Figure 1. Get a picture of your Connext DDS System with Log Parser

Log Parser takes advantage of the highest verbosity level of the RTI Connext DDS logs to analyze the behavior of a Connext DDS application. The results are presented in a human-readable format. They contain information similar to network tools like Wireshark with the benefit of working even when the communication is Shared Memory only. The log verbosity of the DDS application is configurable via the Logging QoS policy of the DomainParticipantFactory. This can be changed by using an XML file, a code snippet or an environment variable (more details here).

rti-diagram-log-parser-parsing-dds-logs-0318

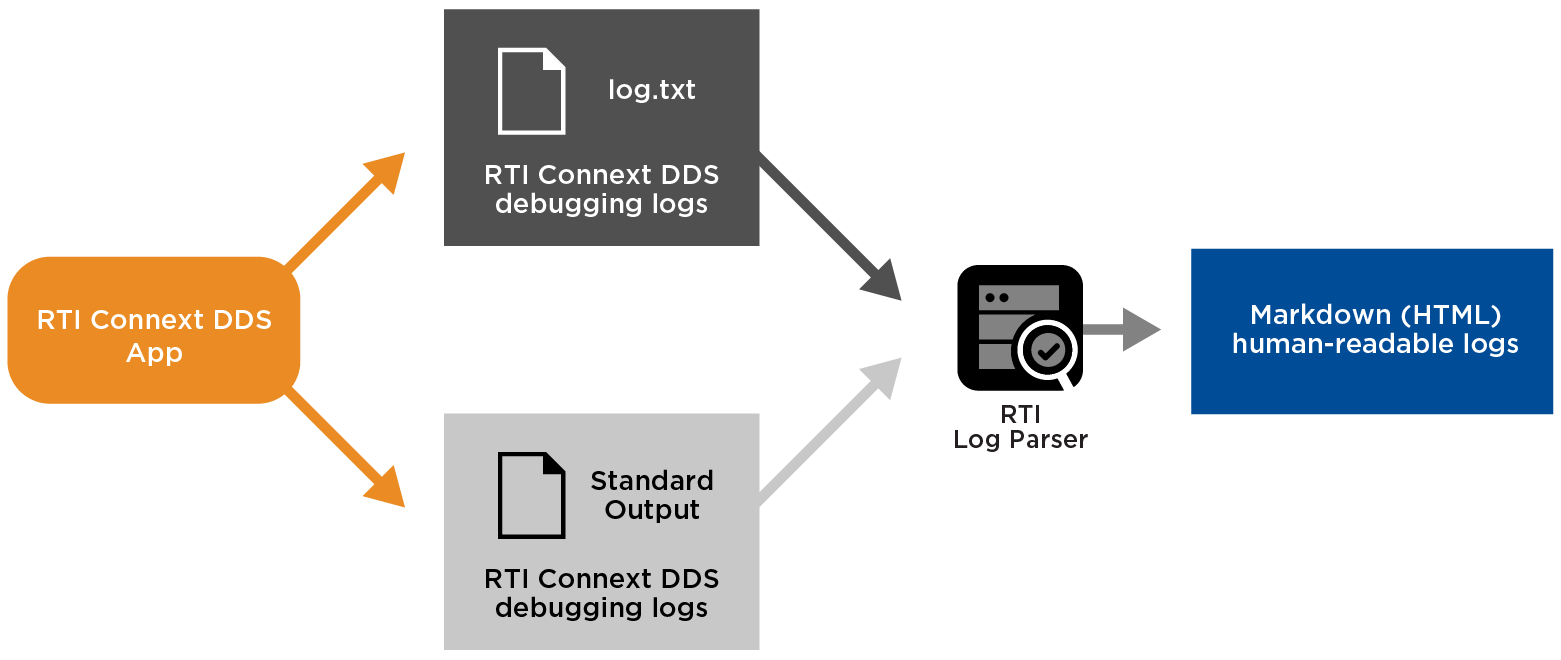

Figure 2. Parsing RTI Connext DDS logs with Log Parser

Log Parser takes the information contained in the log.txt file and debugging logs, and presents it in a user-friendly HTML format. As a result, users can quickly interpret the valuable and detailed internal log messages printed by Connext DDS in order to:

  • Debug communication issues
  • Understand the workflow of a DDS application
  • Confirm that Connext DDS is not reporting any problems (e.g., errors, warnings)
  • Gain insight into low-level details, such as RTPS packets sent/received

Key Features and Benefits

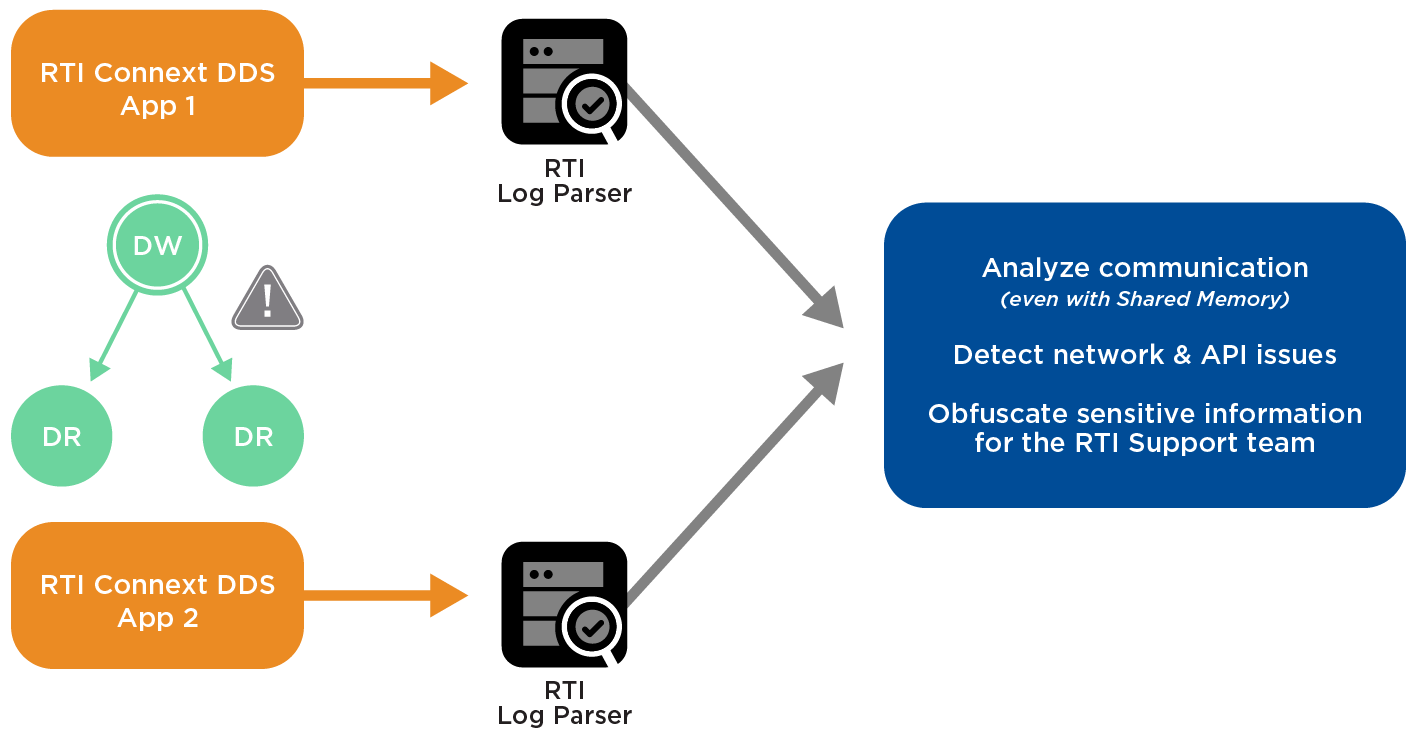

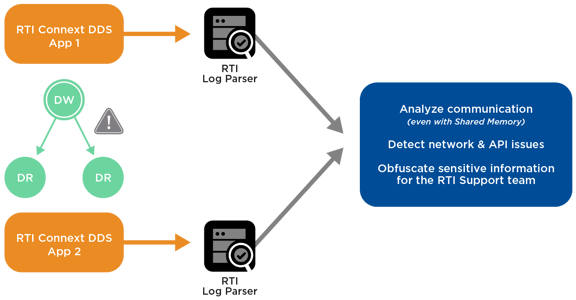

rti-diagram-log-parser-debug-dds-issues-0318Figure 3. Key features relating to debugging RTI Connext DDS issues


Log Parser Features:

  • Understand debugging log messages from RTI Connext DDS products
  • Detect communication and API usage problems
  • Get network statistics
  • Obfuscate sensitive information

User Benefits:

  • Debug DDS issues in your applications
  • Understand low-level details of DDS communication more easily
  • Validate correct usage of the Connext DDS API

Details

RTI Labs Project Type: Debugging tool

Maturity Level: Prototype

Support. This is an experimental RTI product. As such, we only offer support through the RTI Community Forum where fellow users and RTI engineers can help you. If you encounter an issue while using Log Parser, you can also open a ticket in the issues section of the repository. Additionally, along with your questions, we encourage you to post your feedback on the Community Forum! (we'd love your feedback on Log Parser!)

Intent. Log Parser is slated for continued development.

Feedback. You can provide feedback via the RTI Community Forum.

Which Platform(s) is it Available On? Anything that runs Python, including Mac OS X, Linux and Windows

System Requirements. You will need Python 2.7 or 3.x.

Product Compatibility

  • RTI Connext DDS version 5.1.0 and up
    • Including messages from RTI Routing Service
  • RTI Connext DDS Micro version 2.4.9 and up

License. Apache 2.0. For specifics, please see the License, located in the Log Parser GitHub repository.

Download

All versions of RTI Log Parser for Connext DDS are available for download here: https://github.com/rticommunity/rticonnextdds-logparser

Documentation

Log Parser’s documentation is located in the RTI Community GitHub repository.

Examples

Next Steps
