RTI Administration Console is an essential tool for visualizing data directly from your system as well as troubleshooting and monitoring all Connext® DDS infrastructure services . The Administration Console minimizes troubleshooting time and effort in all stages of application development by proactively analyzing system configuration and log messages. Problems are highlighted, making them easy to find and address.

Features

  • Provides detailed views of the Connext DDS system. Filtered by System, Process, Domain, or Topic
  • Inspects and visualize instances and samples
  • Shows samples as graphs or tables
  • Identifies Quality of Service (QoS) mismatches (match graphs)
  • Finds data type mismatches
  • Discovers and inspects processes, topics and Data Types

Details

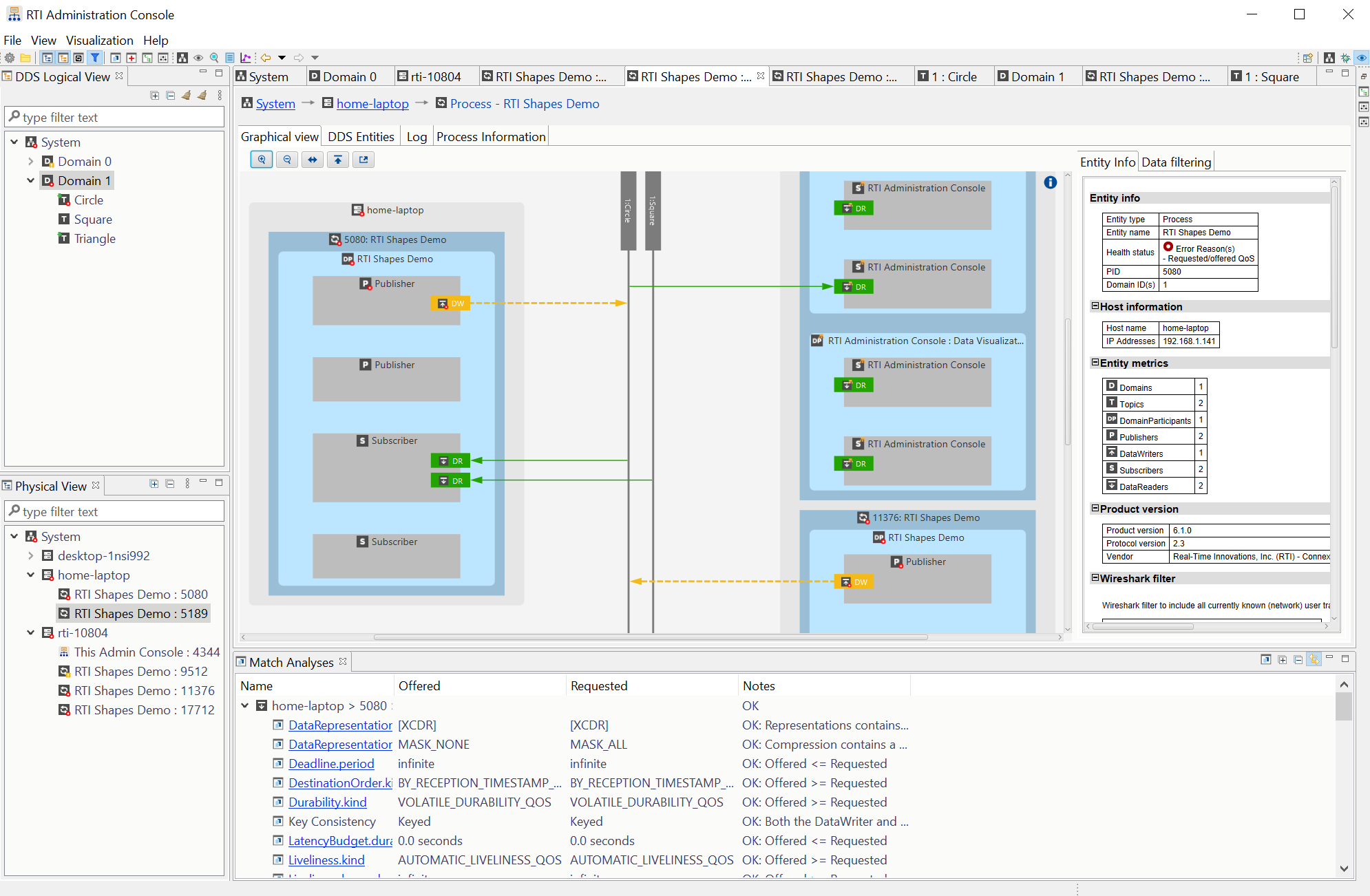

image1-Apr-30-2021-09-11-28-52-PM

System awareness:

  • Who is running what, where?
  • What hosts are active?
  • What domains are active?
  • How are my (discovery-propagated) QoSs set?
  • Exactly what Data Types are being Published/Subscribed?

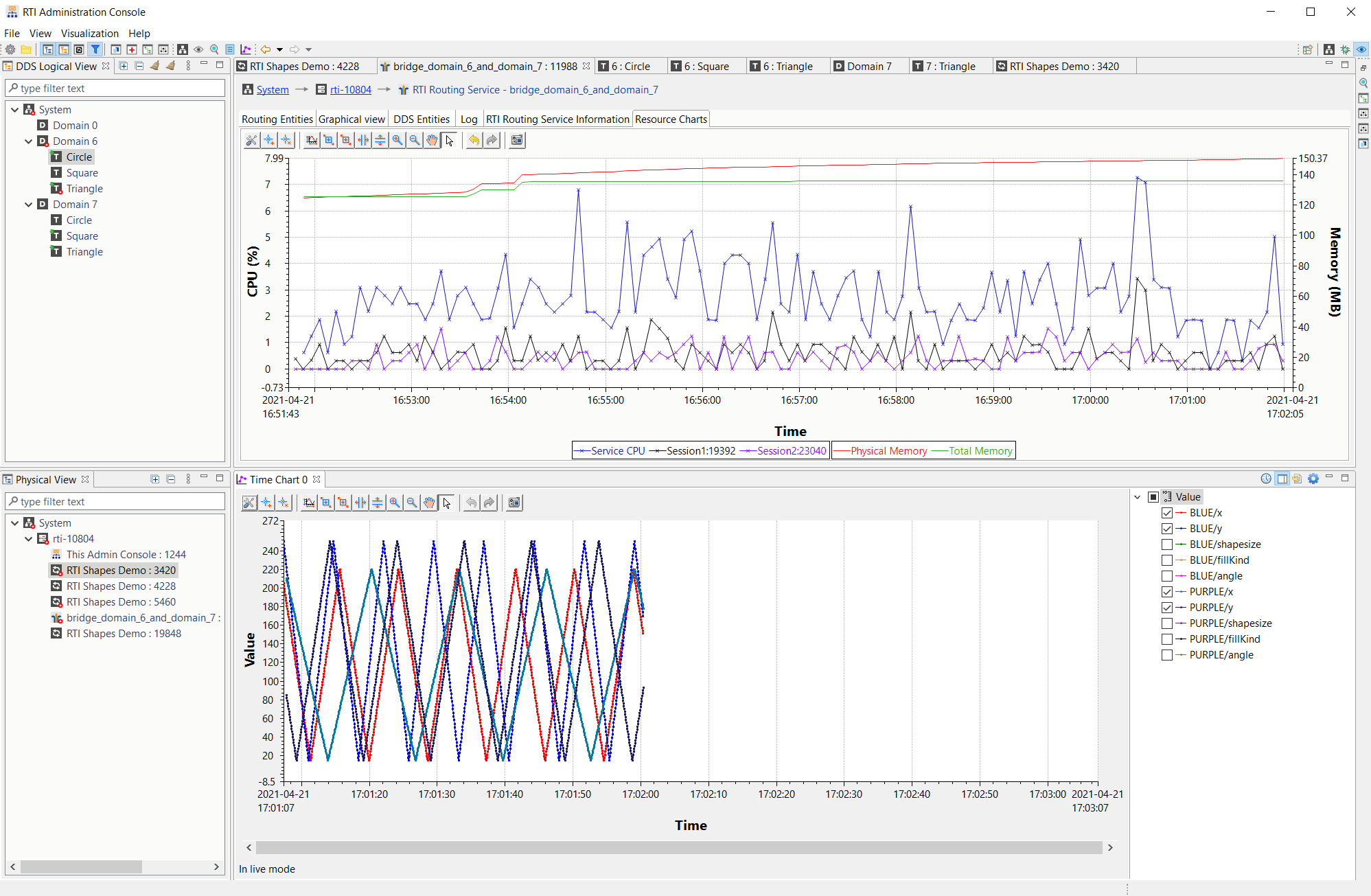

image3-Apr-30-2021-09-11-28-65-PM

Visualization of real-time data flows:

  • Subscribe to topics
  • Visualize real-time Data Distribution ServiceTM (DDS) data flowing in the system with the instance table, sample log and time chart
  • Compare and store data

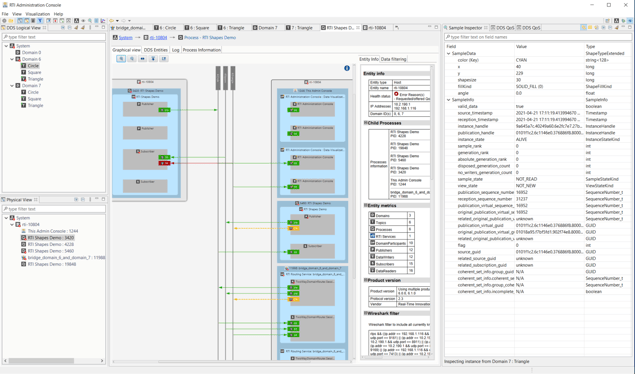

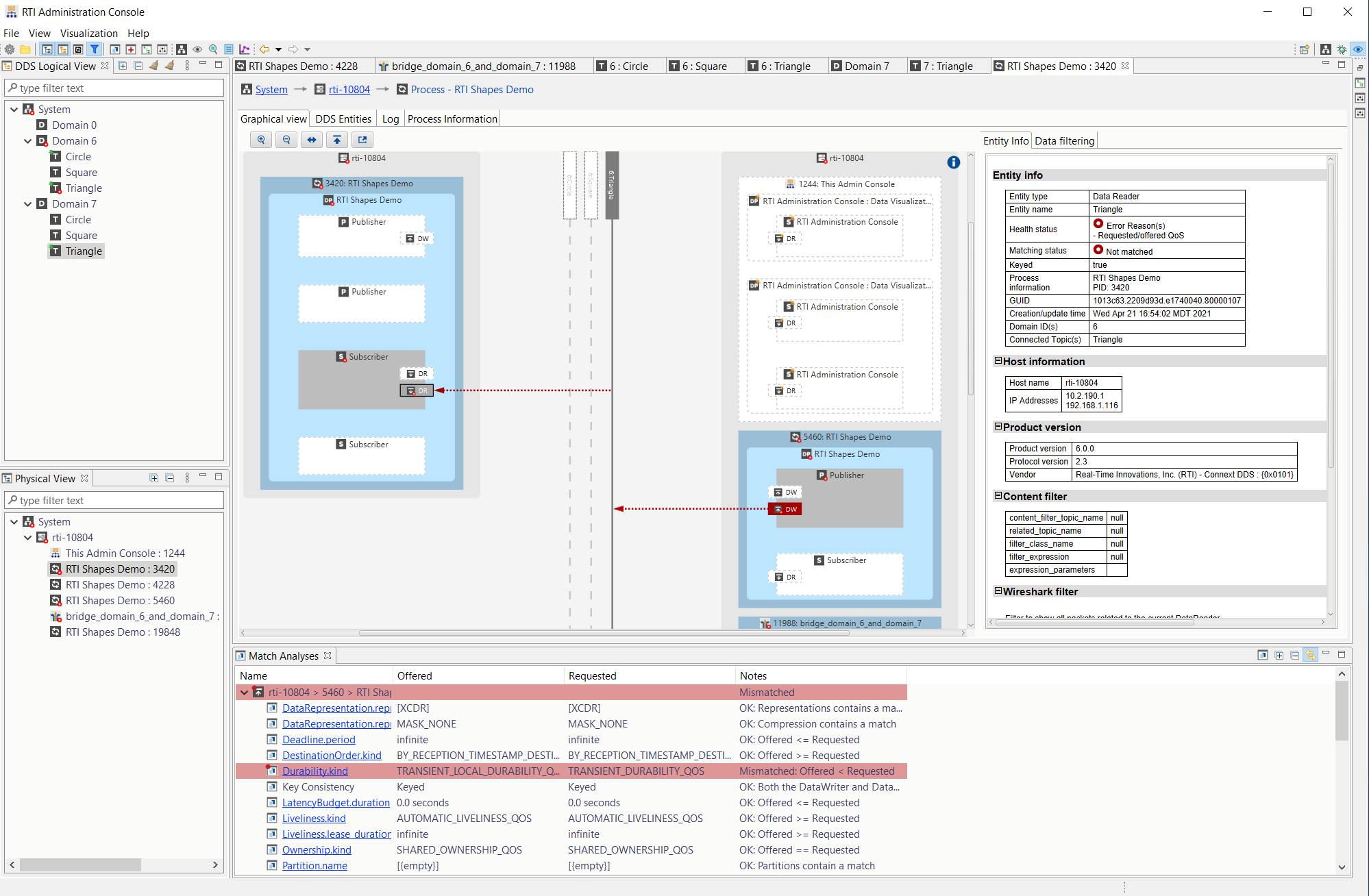

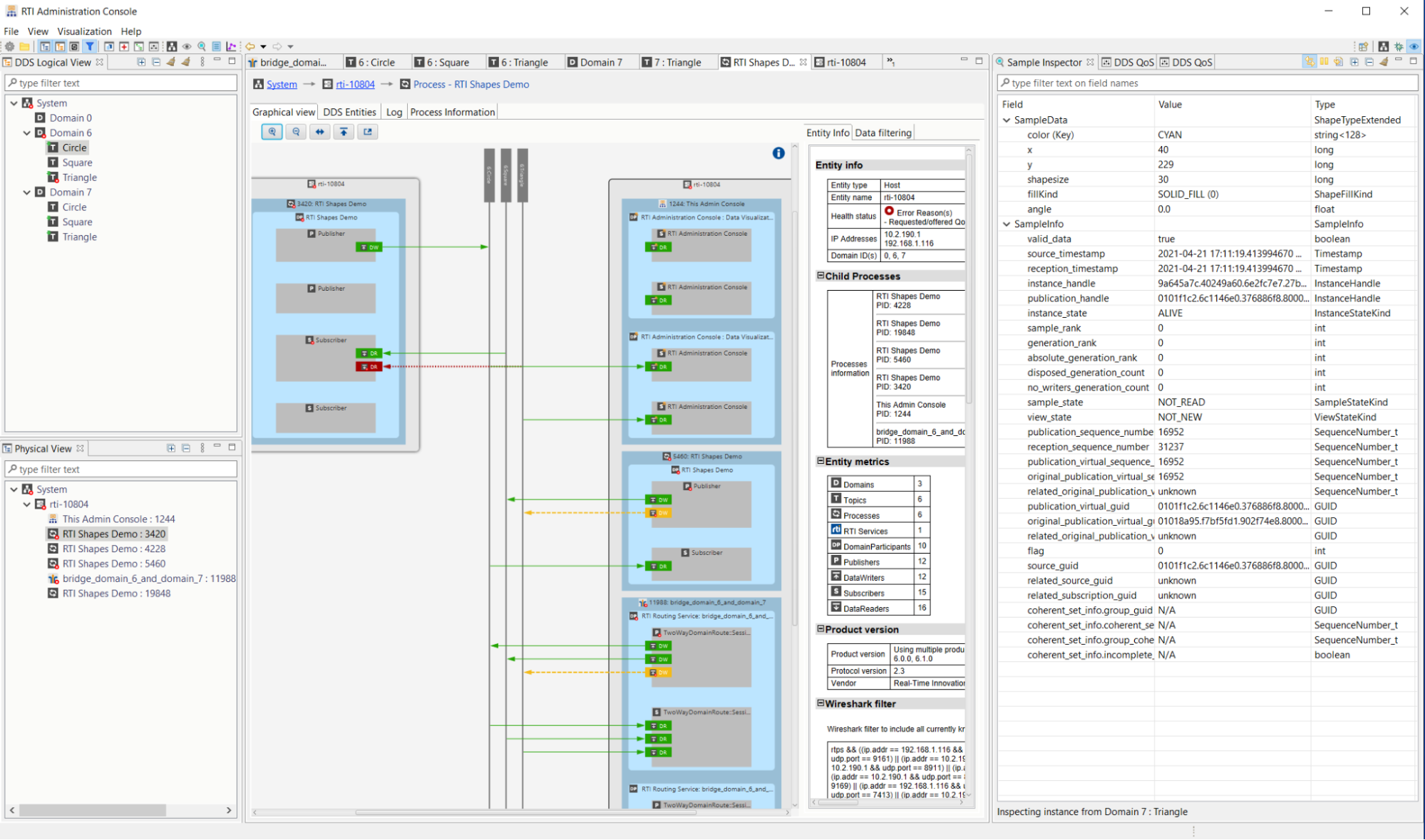

image2-Apr-30-2021-09-11-28-91-PMimage4-Apr-30-2021-09-11-28-66-PM

Debugging:

  • Check for miss-matched QoSs or types
  • View log messages of remote processes (using Distributed Logger)
  • Administer Distributed Logger instances remotely

image1-Apr-30-2021-09-15-36-52-PM

Administration:

  • Monitor and control Routing Service and Recording Service instances
  • Control RTI Services remotely
